Product Description

X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe
Product Description:
LSAW steel pipe (Longitudinally Submerged Arc Welding abbreviated  is a professional expression term for LSAW steel pipe. It uses a single medium and thick plate as the raw material, and the steel plate is pressed (rolled) into a tube blank in a mold or a forming machine. The pipe is produced by submerged arc welding and expanded diater.  In the construction of high strength, high toughness and high quality long-distance oil and gas pipelines, most of the steel pipes required are large-diameter thick wall straight seam submerged arc welded pipes.

According to API standards, in large oil and gas pipelines, straight seam submerged arc welding pipe is the only designated applicable pipe type when it passes through class 1 and class 2
areas such as alpine zone, seabed and densely populated urban areas.
 According to the forming way, it can be divided into:

UOE welded pipe: sheet steel plate at the edge of pre-bending, after U forming, O forming, internal welding, external welding, mechanical cold expanding process;

JCOE welded pipe: namely according to the "J-C-O-E" pre-welding, forming, after welding through cold expanding and other processes;

HME welded pipe: it is formed by mandrel rolling method according to "C-C-O", after welding, it goes through cold expanding and other processes


Specification:
UOE SAWL PIPES
Outside Diameter:Φ508mm- 1118mm (20"- 44")
Wall Thickness: 6.0-25.4mm 1/4"-1"
Quality Standards: API,DNV,ISO,DEP,EN,ASTM,DIN,BS,JIS,GB,CSA
Length: 9-12.3m (30'- 40')
Grades: API 5L A-X90,GB/T9711 L190-L625


JCOE SAWL PIPES
Outside Diameter:Φ406mm- 1626mm (16" - 64" )
Wall Thickness:6.0- 75mm (1/4" - 3" )
Quality Standards:API,DNV,ISO,DEP,EN,ASTM,DIN,BS,JIS,GB,CSA
Length:3-48m
Grades:API 5L A-X100, GB/T9711 L190-L690
Tolerance of Outside Diameter and Wall Thickness
Tolerance of Outside Diameter and Wall Thickness
Types Standard
SY/T5040-2000 SY/T5037-2000 SY/T9711.1-1977 ASTM A252 AWWA C200-97 API 5L PSL1
Tube end OD deviation ±0.5%D ±0.5%D -0.79mm~+2.38mm <±0.1%T <±0.1%T ±1.6mm
Wall thickness ±10.0%T D<508mm, ±12.5%T -8%T~+19.5%T <-12.5%T -8%T~+19.5%T 5.0mm<T<15.0mm, ±0.11
D>508mm, ±10.0%T T≥15.0mm, ±1.5mm

Chemical Composition and Mechanical Properties
Standard Grade Chemical Composition(max)% Mechanical Properties(min)
C Mn Si S P Yield Strength(Mpa) Tensile Strength(Mpa)
GB/T700-2006 A 0.22 1.4 0.35 0.050 0.045 235 370
B 0.2 1.4 0.35 0.045 0.045 235 370
C 0.17 1.4 0.35 0.040 0.040 235 370
D 0.17 1.4 0.35 0.035 0.035 235 370
GB/T1591-2009 A 0.2 1.7 0.5 0.035 0.035 345 470
B 0.2 1.7 0.5 0.030 0.030 345 470
C 0.2 1.7 0.5 0.030 0.030 345 470
BS En10025 S235JR 0.17 1.4 - 0.035 0.035 235 360
S275JR 0.21 1.5 - 0.035 0.035 275 410
S355JR 0.24 1.6 - 0.035 0.035 355 470
DIN 17100 ST37-2 0.2 - - 0.050 0.050 225 340
ST44-2 0.21 - - 0.050 0.050 265 410
ST52-3 0.2 1.6 0.55 0.040 0.040 345 490
JIS G3101 SS400 - - - 0.050 0.050 235 400
SS490 - - - 0.050 0.050 275 490
API 5L PSL1 A 0.22 0.9 - 0.03 0.03 210 335
B 0.26 1.2 - 0.03 0.03 245 415
X42 0.26 1.3 - 0.03 0.03 290 415
X46 0.26 1.4 - 0.03 0.03 320 435
X52 0.26 1.4 - 0.03 0.03 360 460
X56 0.26 1.1 - 0.03 0.03 390 490
X60 0.26 1.4 - 0.03 0.03 415 520
X65 0.26 1.45 - 0.03 0.03 450 535
X70 0.26 1.65 - 0.03 0.03 585 570

Types of galvanized steel pipe
STANDARDS PRODUCTS RANGES
IS:1239 (Part-I) Mild Steel Tubes, Tubular 15mm NB - 150mm NB
IS:1161 Mild Steel Tubes for Structural purpose 15mm NB - 200mm NB
IS:3601 Mild Steel tubes for Mechanical & General Eng. purpose 20mm x 0.80mm to 165.10 x 7.00 mm
IS:3589 ERW Pipes for water Gas & Sewage 168.3 x 4.00 mm to 219.1 x 7.00mm
IS:9295 Steel Tubes for Idlers for Belt conveyors 63.5 x 4.00 mm to 219.1 x 7.0 mm
IS:4270 Steel Tubes for Water Wells 114.3 x 5.00mm to 219.1mm x 7.1mm
IS:7138 Steel Tubes for furniture 20.0 x .60mm to 60.0 x 2.0mm
IS:4923 Hollow Steel sections for structural purpose 12.5 x 12.5 x 0.80 to
150 x 150 x 6.0mm
10 x 20 x 0.80mm to
150 x 200 x 6.0mm
IS:3074 Steel Tubes for Automobile purpose 19.7 x 1.00mm to 101.6 x 6.0mm
BS:1387 Screwed & Socket Steel Tubes & Tubular ½"NB to 6″NB 2.00 mm - 5.40 mm wall thick
BS:3601 Steel Pipes & Tubes for pressure purpose ½"NB to 6″NB 2.00 mm - 7.00 mm wall thickness
BS:6323 Steel tubes for mechanical & general engineering purposes 21.3″ to 219.1mm OD wall thickness-1.60-7.00 mm

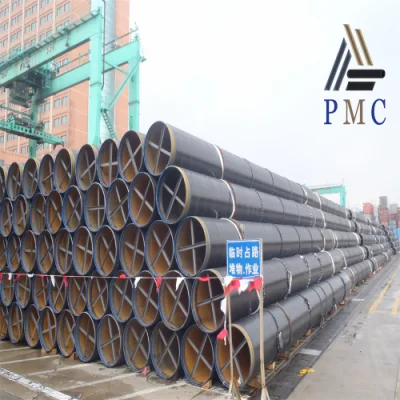

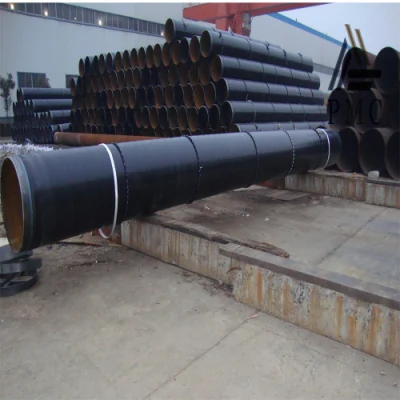

Latest LSAW coating project order:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe
LSAW Pipe Manufacturing Process:

UOE:

X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe
JCOE:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

Whole Services:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

About us:

1.Pipe:
Permanent Steel Manufacturing Co.,Ltd has been committed to being a major supplier of quality kinds of carbon steel pipe, stainless steel tube, hollow section numerous types of piping equipments including Bend, Cap, Coupling, Elbow, Reducer, Stub End, Tee, Olet, Joint, Gasket, etc.

The Products from Permanent Steel Manufacturing Co.,Ltd are supplied in accordance with appropriate International Standards as well as Customer Specifications in a large variety of steel grades and dimensions. Permanent Steel Manufacturing Co.,Ltd on a 250,000 m2 area and has three production units: Foundry, Rolling and Extrusion mills. Permanent Steel Manufacturing Co.,Ltd operates under strict quality, environmental, as well as health and safety management systems, in compliance with ISO 9001, ISO 14001 and OHSAS 18001 standards.  We have six spiral pipe production lines have introduced into the international advanced technique design andmanufacturing,each of them is outfitted with the whole set equipment from uncoiling to pipeindpection,packing and then Ex-work,includingun coiler, leve ling ma chine , fly welding machine ,plasma cutting machine,pipe endgrinding machine,hydrostatic testing machine,beveling machine,end expander, ultrasonic inspector for pipe body and weld seam,highlyclear X-ray image inspection system and so on.

X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

2.Coating:
We have two advanced three-layer PE anticorrosive pipe production lines, which can carry out three-layer PE and FBE anticorrosion for steel pipe with diameter of 20mm to 1820mm, as well as epoxy asphalt anticorrosion production line, steel-plastic composite pipe production line, internal and external plastic coating and plasticlining production line, and cement mortar production line for inner wall of steel pipe. The annual anticorrosion production capacity reaches 18 million square meters.  Since its establishment, the company has formed a good cooperative relationship with many domestic and foreign steel pipe manufacturers, gas companies and oil companies, and its sales network covers many countries.

X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe
Technique center:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

Our Certificate:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW PipeEnd Users:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

Our team:
X52 LSAW/X70 LSAW/X80 LSAW/X65 LSAW/Q235 LSAW/Q345 LSAW/LSAW/LSAW Steel Pipe/LSAW Pipe/ERW Pipe

Our advantage:
1. Full projects reference all of the world and vendor references from the most main oil and Gas in stitute, companies, investors
2. The inspection program is full supported to the docs requirements
3. The list of producing equipment and inspection equipment will be provided
4. The relative shipping docs, third party inspection report, Mill test certification, custom appreciate letters
5. The mill certification such as API monogram , ISO ect....
7. ITP, MPS & ISO manual
8. Prices competitively level
9. Full presentation experiences and guidance
10. Engineering design & construction capacities
11. Financial supports, various of payment term could be acceptable such as L/C, T/T.
12. Free custom inspection corporation & checked corporation in CCPIT
13. Full bank supported company with a perfect line of Credit "AAAAA"
       ect



FAQ



Q: How long is your delivery time?


A: Depends on pipes size and quantity. 7-10 days for stocked steel pipe and 20-40 days for new productions according to quantity.bowl shape stainless steel smoking pipe screens

Q: Do you provide samples? Is it free or extra? 201 Stainless Steel Pipe used for Food and Chemical Industry
A: Yes,we could offer free steel pipe sample for your evaluation. stainless steel pipe fitting

Q: What is your terms of payment? steel pipe

A:  TT payment way, TT+LC, or  100%  sight LC and usance L/C for 30-120days,the specific payment should be addressed by further discussion.
