Basic Info.
Product Description

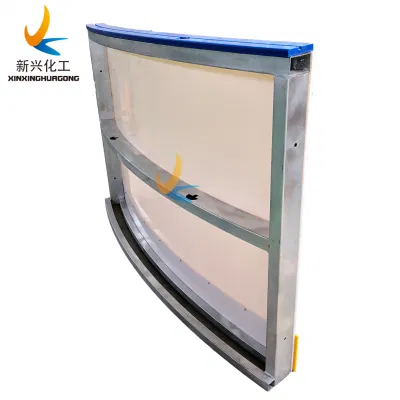

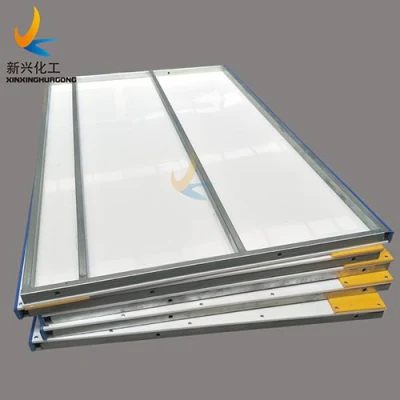

This ice rink barrier's material is HDPE, it includes panel, steel frame, steel support leg, handrail and screw. Special design adding Aluminum alloyed bright color guarantee the quality of the product that is safety, beautiful, sturdy and durable.
Every piece is hand crafted by expert tradesmen with the highest quality materials to ensure quality and durability and comes with a 5 years warranty. Ideal for either indoor or outdoor backyard rinks, arenas, commercial or residential projects. Easily transported and assembled and stored in the off season. Comes with all required connection hardware. Constructed of 1/2'' thick high density polyethylene facing, specially treated for UV protection and warping.
Comes in 48''H standard heights: Modular pieces allow for complete customization and scalability for any size rink.
Optional colors:
1 Blue cap rail, yellow kicking board, White facing colour
2 Blue cap rail, Red kicking board, White facing colour
3 Any color you need
Available as either steel or aluminum construction, all of our dasher board systems are custom designed, manufactured and installed by us to your specifications. When you purchase a dasher board system from XINXING CHEMICAL you are guaranteed to get the best quality product at a competitive price.
- Retrofit or new construction
- Aluminum and steel dasherboard systems
- Permanent and portable systems
- Stainless steel hardware standard on all systems
- Powder coated panels available any colour for both aluminum and steel frames
- Prefabricated or on-site build
- Demountable systems for easy conversion in multi-purpose facilities
- Supported or seamless systems available
- Contact us today to discuss your needs or to receive a quote based on your specific requirements.
Custom lengths available on request.
Colour Options:
- Blue Cap Rail, Gold Kick Plate, White Facing Colour
- Blue Cap Rail, Red Kick Plate, White Facing Colour
- Any color you want

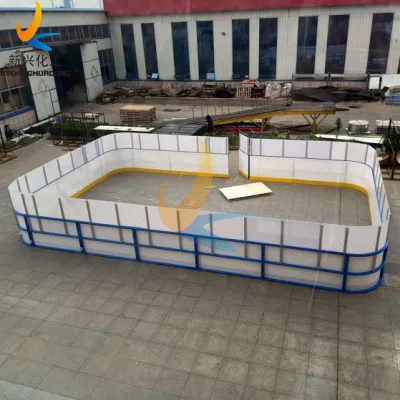

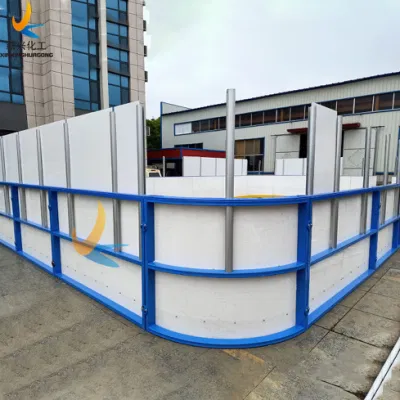

Our XINXING HDPE(High Density Polyethylene) dasher boards allows for indoor and outdoor soccer, inline hockey, football, ice skating and other sports to be programmed in your building or outdoor with little changeover required.
The properties of HDPE :
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Construction
Frame: hot-dip galvanized steel construction
Height: optionally 100 or 120cm
Cladding: white 10 mm PE plates
Handrail: blue 12mm PE strips

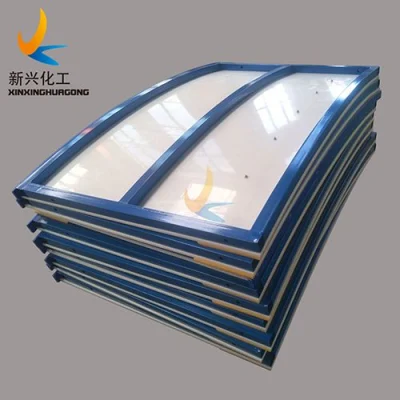

Radii: optionally 2.5 / 4.0 / 6.0m or without radius in square design
Kick Plate: yellow 10mm PE plate
Mounting: optionally freezing / screwing on
Advantages
- suitable for any ice rink size
- high quality execution
- different heights and radii
- space-saving storage
- fast assembly / disassembly
- doors, gates, radii can be individually configured and positioned
- usable as advertising space
- can be used in the summer as an inline hockey band

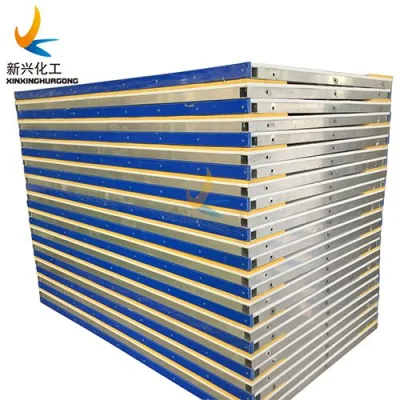

Packaging
1. pallet with carton.
2. Plastic pallet with carton.
3. wooden pallet with wooden case.
4. According to customer requirements.
