Basic Info.
Model NO.
20MM--1218MM
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Construction & Decoration
Section Shape
Round
Unit Length
5.8-12m
Transport Package
Standard Export Package
Specification
300 series
Trademark
ADTO
Origin
China
Production Capacity
60000 Metric Tons
Product Description

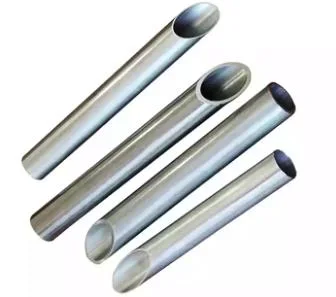

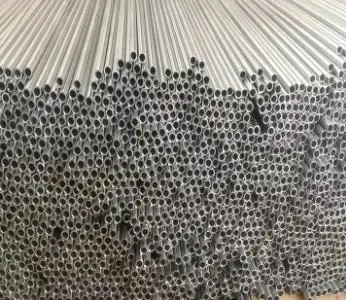

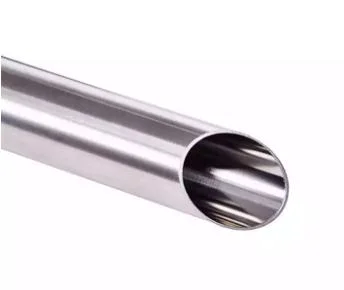

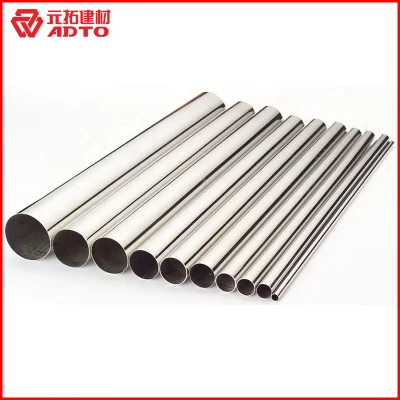

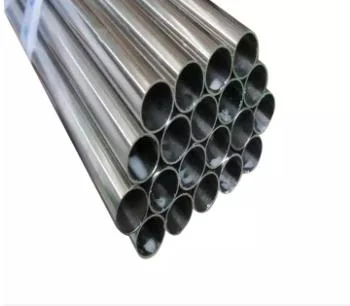

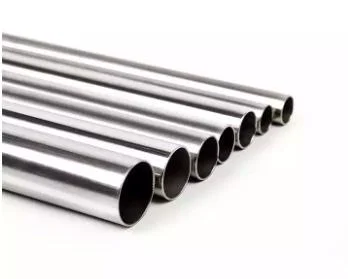

ADTO Stainless steel welded pipe provides a high level of strength and corrosion resistance for applications in harsh industrial environments whether hot or cold, widely used in fluid transportation, construction and other general applications, such as oil, sea oil, chemical, pharmaceutical machinery, aerospace, nuclear power, shipbuilding, high-pressure boiler, heat exchanger, Pressure vessels, condensers, water, electrical and other industries.
Standard:
ASTM A312, ASTM A213, ASTM A269, ASTM A511, ASTM A789, ASTM A790,
JIS349, JIS3459,
DIN17456, DIN17458,
EN10216-5, GOST 9941-81
Materials Grade:
304,304 L, 304H, 321,321 H, 316,316 L, 317L, 310S, 347H
Specefications:
| OUTSIDE DIAMETER | WALL THICKNESS | |||||||||
| NB(INCH) | ASME(MM) | SCH10 | SCH30 | SCH40 | SCH60 | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2 | 21.3 | 2.11 | 2.41 | 2.77 | 3.73 | 4.78 | ||||
| 3/4 | 26.7 | 2.11 | 2.41 | 2.87 | 3.91 | 5.56 | ||||
| 1 | 33.4 | 2.77 | 2.9 | 3.38 | 4.55 | 6.35 | ||||
| 1.1/4 | 42.2 | 2.77 | 2.97 | 3.56 | 4.85 | 6.35 | ||||
| 1.1/2 | 48.3 | 2.77 | 3.18 | 3.68 | 5.08 | 7.14 | ||||
| 2 | 60.3 | 2.77 | 3.18 | 3.91 | 5.54 | 8.74 | ||||
| 2.1/2 | 73 | 3.05 | 4.78 | 5.16 | 7.01 | 9.53 | ||||
| 3 | 88.9 | 3.05 | 4.78 | 5.49 | 7.62 | 11.13 | ||||
| 3.1/2 | 101.6 | 3.05 | 4.78 | 5.74 | 8.08 | |||||
| 4 | 114.3 | 3.05 | 4.78 | 6.02 | 8.56 | 11.13 | 13.49 | |||
| 5 | 141.3 | 3.4 | 6.55 | 9.53 | 12.7 | 15.88 | ||||
| 6 | 168.3 | 3.4 | 7.11 | 10.97 | 14.27 | 18.26 | ||||
| 8 | 219.1 | 3.76 | 7.04 | 8.18 | 10.31 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10 | 273 | 4.19 | 7.8 | 9.27 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12 | 323.8 | 4.57 | 8.38 | 10.31 | 14.27 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14 | 355.6 | 6.35 | 9.53 | 11.13 | 15.09 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16 | 406.4 | 6.35 | 9.53 | 12.7 | 16.66 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18 | 457.2 | 6.35 | 11.13 | 14.27 | 19.05 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20 | 508 | 6.35 | 12.7 | 15.09 | 20.62 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22 | 558.8 | 6.35 | 12.7 | 22.23 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24 | 609.6 | 6.35 | 14.27 | 17.48 | 24.61 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26 | 660.4 | 7.92 | ||||||||
| 28 | 711.2 | 7.92 | 15.88 | |||||||
| 30 | 762 | 7.92 | 15.88 | |||||||
