Basic Info.
Product Description
| Product Name | Special-shaped Steel Pipe |

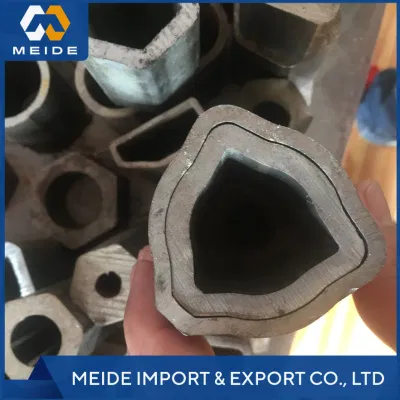

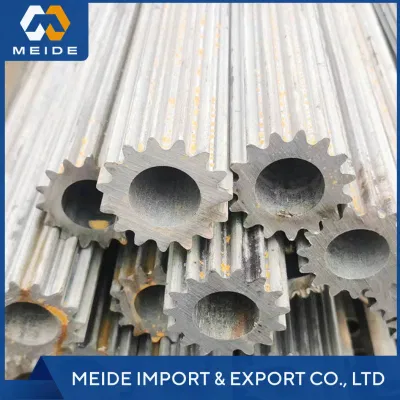

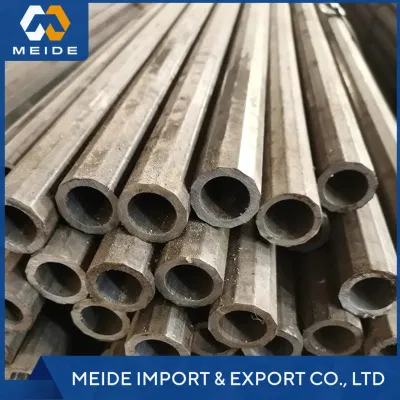

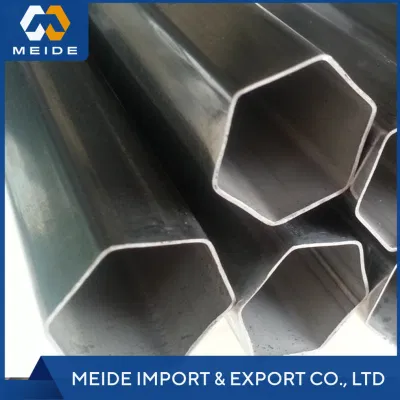

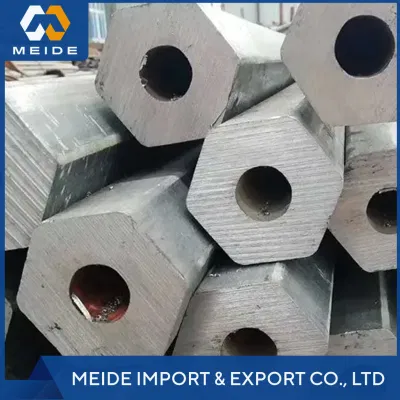

| Shape | Outer six inner circle, outer circle inner six, octagonal tube, hexagonal tube, oval tube, diamond shaped tube, square tube, rectangular tube, can be customized according to requirements |
| Standard | BS EN GB AiSi ASTM DIN JIS |
| Grade | EN 10219, ASTM A500, AS/NZS1163, GB/T 6728 |
| Outer diameter | 10-426mm or customized as required |
| Thickness | 1.0-35mm or customized as required |
| Width | 3-12m or customized as required |
| Surface Treatment | Hot dip galvanizing treatment, rust prevention oil treatment, sand blasting treatment, spray painting treatment, polishing treatment |
| Further Processing for Steel Tubes | Final Annealing, Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking |
| Technology | Cold Drawn / Cold Rolled |
| Inspection | Acceptable |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. |
| Certificate | ISO,BV,SGS,MTC |
| MOQ | 1 Ton |
| Processing service | Bending, Welding, Decoiling, Punching, Cutting |
| Transport package | Standard sea export packing or as required |
| Payment terms | T/T,L/C |
| Loading port | Tianjin/Qingdao/Shanghai Port |
| Application | Construction industry, machinery manufacturing, automobile manufacturing, petroleum, natural gas, chemical industry, aerospace, electric power industry, environmental protection equipment |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
Characteristics and application: This steel series is imported from American AISI/SAE standard steel grade 8720. Its hardenability is similar to that of 20CrNi steel, and its strength is higher than that of 20CrNi steel. Used to manufacture gears for engines and transmission systems of small and medium-sized cars and tractors; It can also replace 12CrNi3 to manufacture carburized steel and carbonitriding parts with higher requirements for central performance, such as the jaw and cone body of cone bits for oil drilling and metallurgical mining.
| Grade of Material | Tensile Strength Mpa | Yield strength Mpa | Elongation % | Hardness | Straightness |
| A106-A | ≥330 | ≥205 | 30 | / | / |
| A106-B | ≥415 | ≥240 | 30 | / | / |
| A106-C | ≥485 | ≥275 | 30 | / | / |
| 10#, AISI 1010 | ≥335 | ≥205 | ≥31 | ≤137HB | 0.3~1.0 |
| 20#, AISI 1020 | ≥410 | ≥245 | ≥25 | ≤156HB | 0.3~1.0 |
| 35#, AISI 1035 | ≥530 | ≥315 | ≥20 | ≤156HB | 0.3~1.0 |
| 45#, AISI 1045 | ≥600 | ≥355 | ≥16 | ≤HRC62 | 0.3~1.0 |
Shandong Meide Import and Export Co., Ltd. is a famous steel supplier in northern China. We have 5 cold drawing production lines, using automated production lines imported from Germany, which can produce irregular steel pipes with an outer diameter of 10-273mm and a wall thickness of 1-30mm. Our company has mature technology and can customize more suitable grades, shapes, sizes, thicknesses, and lengths for customers and product usage needs. The products produced by our company strictly adhere to the ISO9001 quality system. We have a professional after-sales service team and a comprehensive after-sales service system. Committed to becoming an honest, reliable, and professional steel pipe supplier in China.
1. Who are we?
Our headquarter is located in Shandong, China. Since 2022, we have sold to North America (60.00%), Western Europe (14.00%) and South America (6.00%). There are about 11-50 people in our office.
2. How do we guarantee quality?
Always provide pre-production samples before mass production;
Always carry out final inspection before shipment;
3. What can you buy from us?
Copper, aluminum, die steel, titanium, customized machine parts
4. Why should you buy from us instead of other suppliers?
The company has 25 years of production experience. It has advanced precision production equipment, modern large warehouse, 200000 tons of inventory goods and a number of long-term stable cooperative customers.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW
Accepted payment currency: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, RMB, Swiss franc;
Accepted payment type: T/T, L/C, D/P D/A, PayPal;
Optional ports: Tianjin, Shanghai, Guangzhou;
Spoken: English, Chinese
6. How can we get your price?
A. We need the following information to quote for you:
1). Product Name
2). standard
3). Material grade (chemical composition)
4). dimension
5). amount
6). Special part drawin
