Basic Info.
Model NO.
MS20160314125
Outside Diameter
4mm - 914.4mm;8mm-630mm
Wall Thickness
0.6mm - 30mm;0.5mm-45mm
Length
5.8-6.1 M or as Customers′ Request
Inspection
Dekra, TUV
Transport Package
Plastic, Wooden Case, Others Seaworthy Packing
Specification
0Cr18Ni9, 00Cr19Ni10, 00Cr18Ni10, 00Cr17Ni4Mo2
Trademark
ZJDP
Origin
Zhejiang, China
Production Capacity
3000ton/Year
Product Description

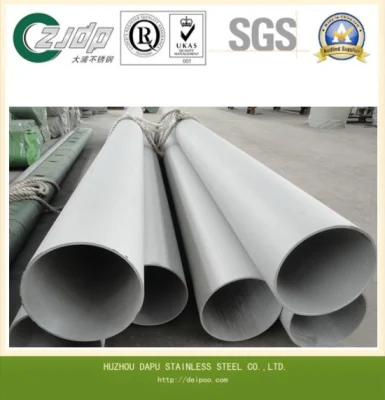

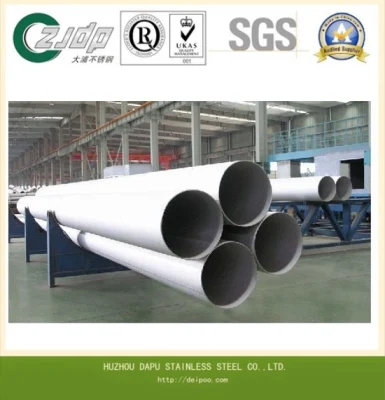

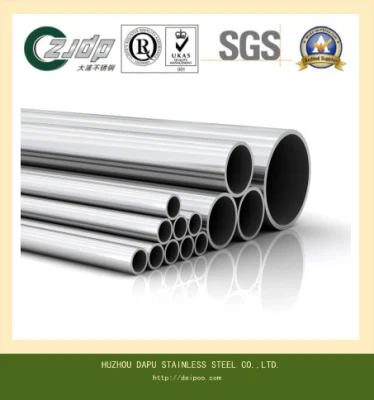

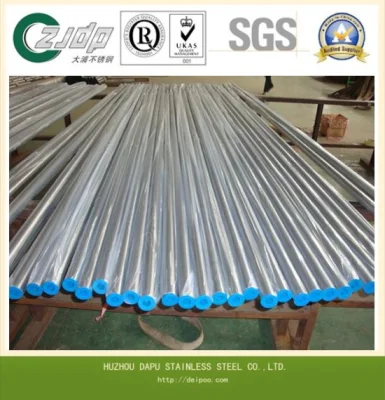

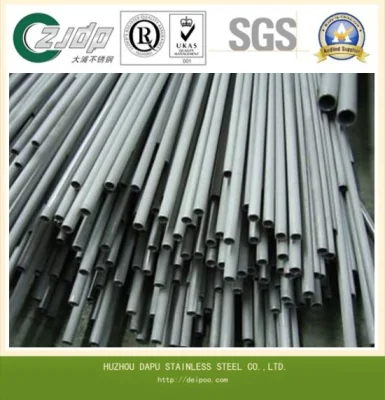

| Name | Stainless Steel Welded Pipe and Seamless Pipe |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| TP410 TP410S TP403 | |
| S31803/S32205 S32750 S32760 | |
| Outer Diameter | Seamless Pipe: 4mm-914.4mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.6mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish | |
| Application | Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries. |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
