Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine

Find high-quality Automatic I.D-Mounted Steel/Alloy Large-Diameter Pipe Beveling Machines at our factory. Improve welding efficiency and accuracy!"
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Features
  • Product Parameters
  • Product Structure
  • Product Packing List
  • Detailed Photos
  • Company Profile
Overview

Basic Info.

Model NO.
EISE-850-2/EISP-850-2
Style
Hand-held
Layout
Vertical
Automatic Grade
Semi-Automatic
Power Source
Electric&Pneumatic
Certification
ISO
Working Range(I.D)
600-820mm
Pipe Thickness
Less Than 75mm
Rotation Speed
9r/Min
Weight
175kg
Model No.
Eise-850-2/Eisp-850-2
Transport Package
Wooden Carton
Specification
1200mm*900mm*600mm
Trademark
E-WORK
Origin
Henan, China
HS Code
8461909000
Production Capacity
30 Set/Sets Per Month

Product Description

Product Description

 This series of machines are ideal for all types of pipe beveling and pipe end preparation. The compact design makes the machine suitable for any narrow working conditions. The machine is self-centering easy to install and disassemble, highly accurate and efficient. It not only can process carbon steel, stainless steel, and alloy pipe with U.V welding seam but also can process convex flange. Ranging from 0.8 to 32 inches. I.D.(DN 18-820mm).
Product Features
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
· Cold Beveling, Can't affect pipe material

· Easy set-up& Operation, Bevel angle can be adjustable(0-40Deg)

· Automatic Feed, High efficiency

· Self-Centering, High Precision

· Special for thick wall pipe (pipe thickness less than 75mm)

· Work direction no limited, small work radius

· Ratchet Handle makes tool feed / back easily

· Light Weight and compact design, Easy to carry

· Electric or Pneumatic driven for option



Product Parameters
Range from 0.8 to 32 inches. LD. (DN 18-820mm)
Note: We can produce customized machines.
Power Model ID (mm) ID (inch) Wall Thickness Rotating Speed
Electric Power (ISE)





Pneumatic Power (ISP)
30 φ18-28 1/2"-3/4" ≤15 50r/min
80 φ28-76 1"-3" ≤15 55r/min
120 φ40-120 1 1/4"-4" ≤15 30r/min
159 φ65-159 2 1/2"-5" ≤20 35r/min
252-1 φ80-240 3"-10" ≤20 16r/min
252-2 φ80-240 3"-10" ≤75 16r/min
352-1 φ150-330 6"-14" ≤20 14r/min
352-2 φ150-330 6"-14" ≤75 14r/min
426-1 φ250-426 10"-16" ≤20 12r/min
426-2 φ250-426 10"-16" ≤75 12r/min
630-1 φ300-600 12"-24" ≤20 10r/min
630-2 φ300-600 12"-24" ≤75 10r/min
850-1 φ600-820 24"-34" ≤20 9r/min
850-2 φ600-820 24"-34" ≤75 9r/min

Model ISE-850-2 ISP-850-2
Driven Electric Pneumatic
Power Supply 220-240V1PH 50/60HZ 2000L/[email protected]
Motor Power 2000W 1 HP
Working Range (LD) 600-820mm 600-820mm
Wall Thickness Less than 75mm Less than 75mm
Rotation Speed 9r/min 9r/min
Net Weight 175KG 175KG
Gross Weight 245KG 245KG
Packing Dimension 120*90*60cm 120*90*60cm



Product Structure
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine



Product Packing List
Name Unit Quantity Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
Machine Set 1
Expanding Block Set 7
II type Tool Pcs 3
Allen wrench Pcs 2
Hexagon wrench Pcs 2
Instruction manual Pcs 1




Detailed Photos

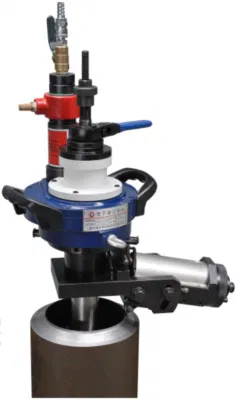

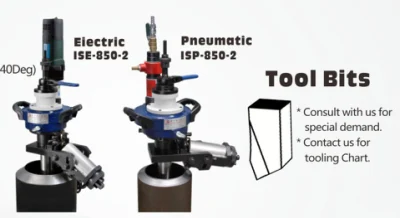

Detailed photos of EISE-850-2 and EISP-850-2
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine

Photos about Beveling Tool Bits

Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling MachineAutomatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine

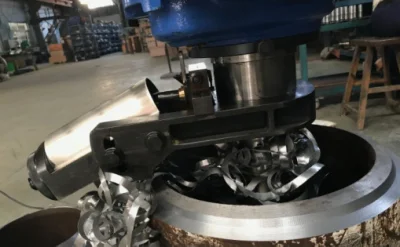

Photos about product application, packing, and customer feedback

Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
Company Profile



Henan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production, and sales of piping machines and tools related to pipes.

In line with the business tenet of "piping solutions expert" and the mission of "making work easy and efficient", we have independently developed and produced a series of products that customers love. Our product series mainly include pipe-cutting machines, pipe-beveling machines, pipe-bending machines, pipe threading machines, HDPE pipe machines, and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel, and plastic pipes.
Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.
Automatic I. D-Mounted Steel/Alloy Large-Diameter Pipe Beveler or Beveling Machine
