Basic Info.
Usage
Pipeline Transport, Boiler Pipe, Boiler Pipe
Section Shape
Round, Round
After-Sales Service
Change/Return
Od
8mm-219mm
Wt
2mm-40mm
Steel Grade-1
T1/T2/ T11/ T12/ T22/ T23/ T91/T92, SA210c SA210A1
Steel Grade-2
10crmo5-5 13crmo4-5 10crmo9-10 X10crmovnb9-1
Steel Grade-3
20g/25mng 15crmog 12cr1movg /R102
Production Standard
ASME SA210, ASME SA213, En10216-2:2002, GB 5310
Loading Port
China Main Port
Transport Package
in Wooden Case, Woven Bag or as Request
Specification
ASTM, JIS, BS, DIN, GOST
Trademark
Kingmetal
Origin
Made in China
HS Code
730490
Production Capacity
1000ton/Month
Product Description

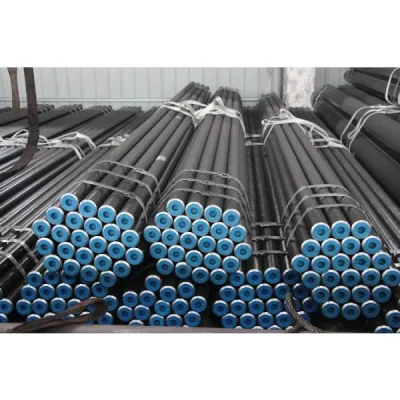

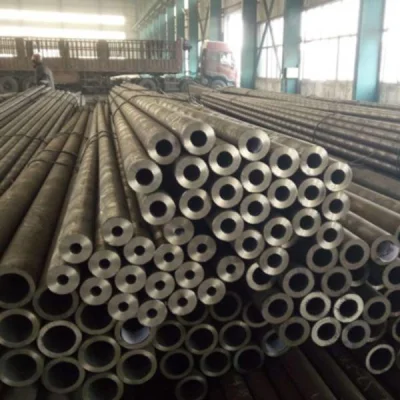

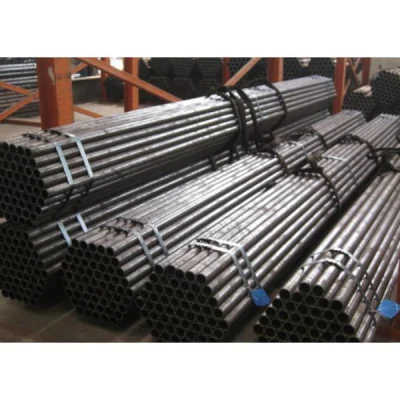

ASTM A335 P11 Alloy Seamless Boiler Tube
OD: 8mm-219mm
WT: 2mm-40mm
Material:
T1/T2/ T11/ T12/ T22/ T23/ T91/T92
SA210C, SA210A1
10CrMo5-5, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1
20G/25MnG, 15CrMoG, 12Cr1MoVG /R102
OD: 8mm-219mm
WT: 2mm-40mm
Material:
T1/T2/ T11/ T12/ T22/ T23/ T91/T92
SA210C, SA210A1
10CrMo5-5, 13CrMo4-5, 10CrMo9-10, X10CrMoVNb9-1
20G/25MnG, 15CrMoG, 12Cr1MoVG /R102
Standard: ASME SA210, ASME SA213, EN10216-2:2002, GB 5310 etc.
| Style | Size | Steel Grade | Standard | |
| OD (mm) | WT (mm) | 20G/25MnG 15CrMoG 12Cr1MoVG /R102 | GB 5310 | |
| High Pressure Carbon Steel Boiler Pipes & Tubes | 8~219 | 2~40 | SA210C SA210A1 | ASME SA210 |
| T1/T2/ T11/ T12/ T22/ T23/ T91/T92 | ASME SA213 | |||
| 10CrMo5-5 13CrMo4-5 10CrMo9-10 X10CrMoVNb9-1 | EN10216-2:2002 | |||
| Application | Used for working pressure greater than 9.8MPA, working temperature 540-6500 ºC of heat pipes, heaters, steam pipes. | |||
| Usual Standard of Boiler Steel Pipes | |
| American Standard | ASTM A210, ASTM A213, ASTM A192, ASTM A179 |
| Common Steel Grade | GR.A1, GR.C, T1, T2, T5, T9-T92 |
| Japanese Standard | JIS J3461, JIS J3462 |
| Common Steel Grade | STB340, STB410, SB510, STBA12, STB A22 |
| European Standard | EN10216-2 |
| Common Steel Grade | P195GH, P235GH, P265GH |
| British Standard | BS3059 |
| Common Steel Grade | 360, 440, 243, 620-460, 622-490, 629-470 |
| German Standard | DIN 17175 |
| Common Steel Grade | ST35.8, ST45.8, 17Mn4, 19Mn5, 15Mo3 |
| Chinese Standard | GB 5310, GB 3087 |
| Common Steel Grade | 20G, 20MnG, 25MnG, 10#, 20# |
