ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

Buy high-quality ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel from our factory. We offer superior products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Quality Inspection
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
ASTM A335 1Cr5Mo
Section Shape
Round
O.D.
20-600 mm or Customized
Length
3-12m or Customized
Shape
Round, Square, Hexagonal, Flat, Angle, Channel
MOQ
5 Tons
Tolerance
+/-1%
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Trade Term
EXW, Fob, CIF, CFR
Delivery Time
7-15 Days
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
Ruilaibo
Origin
China
HS Code
7304191000
Production Capacity
5000 Tons/ Month

Product Description

ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

Product Description



The metal structure of ASTM A335 is martensite, which has good oxidation resistance at about 650 degrees Celsius, good thermal strength below 600 degrees Celsius, and good shock absorption and thermal conductivity, so it is widely used in steam turbines.


A335 p5 pipe is a ferritic stainless-steel alloy pipe. Chemically the pipe consists of Chromium and Molybdenum as the major or principal alloying elements. The percentage of chromium can range anywhere between 4% to 10% and the percentage of Molybdenum is between 0.44% to 1.13%. Moly chrome pipes have high tensile strength, good hardenability, increase creep strength, impact qualities. elastic limit, increased resistance to wear and pitting. The tensile strength for asme sa335 grade p5 pipe ranges from 60,000 psi to 85,000 psi or 415 MPa to 585 Mpa and its yield strength ranges from 30.000 psi to 60,000 psi or 205 Mpa to 415 Mpa. The elongation for pipes made from sa335 p5 material is about 30%.

Adding Molybdenum increases the resistance of sa335 grade p5 to softening. It also prevents grain growth. Further, Molybdenum increases the resistance to brittleness which could occur in chromium steel. This chrome Molybdenum alloy a335 p5 steel pipes is well suited to applications where fluids like oil, water and gases are to be carried across refineries, factories or plants at very high pressure and temperature

REGULAR SIZE
SIZE (OUTER DIAMETER)
WALL THICKNESS
LENGTH
21MM ( 1/2")
1.4MM --2.75MM
6M IN STOCK (OR CUSTOMIZED)
26MM (3/4")
1.4MM -- 2.75MM
6M IN STOCK (OR CUSTOMIZED)
33.4MM (1")
1.4MM -- 3.5 MM
6M IN STOCK (OR CUSTOMIZED)
42.2MM(1 1/4")
1.4 MM -- 3.5 MM
6M IN STOCK (OR CUSTOMIZED)
48.3MM (1 1/2")
1.5MM -- 4.0 MM
6M IN STOCK (OR CUSTOMIZED)
60.3MM (2")
1.6MM -- 4.0 MM
6M IN STOCK (OR CUSTOMIZED)
73MM (2 1/2") - ASTM STANDARD
1.8MM -- 5.5 MM
6M IN STOCK (OR CUSTOMIZED)
76MM (2 1/2") -- BS STANDARD
1.8MM -- 5.5 MM
6M IN STOCK (OR CUSTOMIZED)
88.9MM (3")
2.0MM -- 5.5 MM
6M IN STOCK (OR CUSTOMIZED)
114.3MM (4")
2.0MM -- 6.5 MM
6M IN STOCK (OR CUSTOMIZED)
141.3MM (5")
2.5MM -- 6.5 MM
6M IN STOCK (OR CUSTOMIZED)
165MM(6") - BS STANDARD
2.5MM -- 7.5 MM
6M IN STOCK (OR CUSTOMIZED)
168.3 MM (6") - ASTM STANDARD
2.5MM -- 7.5 MM
6M IN STOCK (OR CUSTOMIZED)
219.1MM (8")
2.5MM -- 9.0 MM
6M IN STOCK (OR CUSTOMIZED)
108MM -- SPECIAL SIZE
2.5MM -- 5.0 MM
6M IN STOCK (OR CUSTOMIZED)
133MM -- SPECIAL SIZE
2.75MM -- 5.0 MM
6M IN STOCK (OR CUSTOMIZED)
159MM -- SPECIAL SIZE
3.0MM -- 7.75MM
6M IN STOCK (OR CUSTOMIZED)

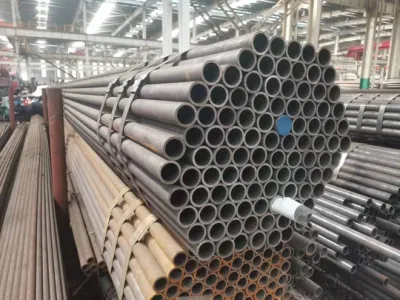

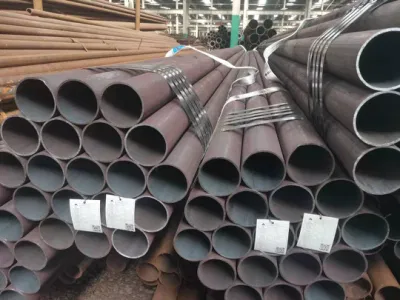

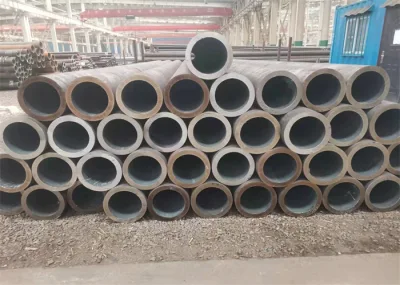

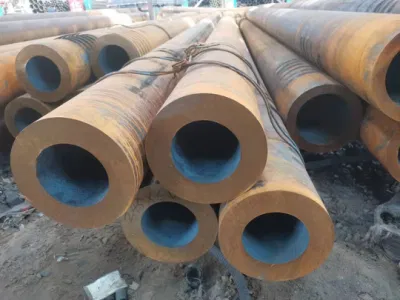

Detailed Photos

ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

Quality Inspection

ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

Packaging & Shipping

ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

Company Profile

  Jiangsu Ruilaibo Special Steel Co., Ltd is located in Wuxi, Jiangsu, which is leading high-end supporting service enterprise in the field of carbon steel, tinplate, galvanized steel, stainless steel material in China. The main products include cold rolled steel products ( full hard products, cold-rolled low carbon steels, high-strength phosphor steels, bake hardening steels, flux-cored wire steel, carbon structural steels, high-strength cold-rolled steel), tinplate products, hot-dip galvanized steel products and stainless steel products.

Mainly exported to Southeast Asia, North Africa and Middle We have more years experience in supplying enterprises and organizations in the international market. Enable us to complete any order in the shortest time. All the products provided meet the technical requirements and reflect the ideal cost performance.
We will guarantee the quality of your product.
Including raw material inspection, supervision of production process,appearance inspection and inspection for the finished products.
We will provide our distinctive packing which improves the protection rate of goods by 30%. We actively seek cooperation with foreign companies, in line with the concept of "excellence, win-win cooperation", with reliable quality and perfect after-sales service system, won the praise of domestic and foreign customers. We sincerely welcome you to our company to negotiate business.
ASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure VesselASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure VesselASTM A335 Alloy P5 1cr5mo Carbon Steel Tube Pipe for Pressure Vessel

FAQ

Q: What is your terms of payment?
A: 30%  TT in advance and balance paid before loading.

Q: Could you provide sample?
A: Yes, we are honored to offer you samples for quality check.

Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

Q: How long does it take for samples and mass production?
A: Usually it will take3-5 days for ready molds, 15-20days for new molds and samples after confirmation, 25-30 days for mass production.
