Basic Info.
Model NO.
DN1500
Lateral
90°Tee
Head Code
Round
Wall Thickness
STD
Finish
Black Painting
Standard
ASTM
Certification
ISO, API, CE
Surface
Black Paint/Varnish/Sand Blast
Quality Control
Dimension/Visual/X-ray/PMI
Mill′s Test Certificate
En10204 3.1 or 3.2
Transport Package
in Wooden Box or Pallet
Specification
1/2"-72"
Trademark
KINGMETAL
Origin
China
Production Capacity
20000 Ton/Year
Product Description

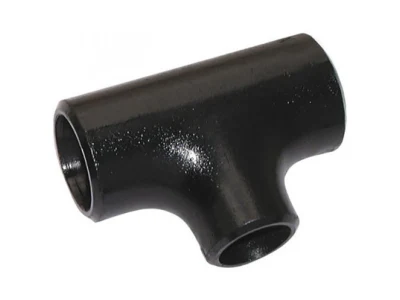

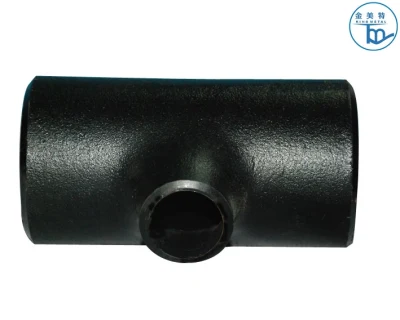

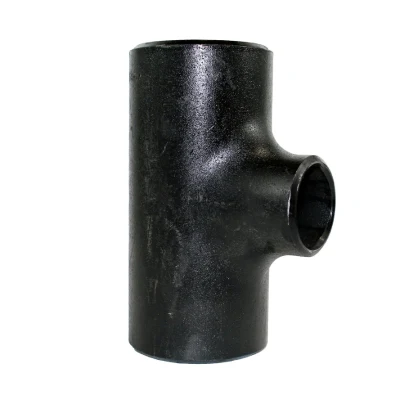

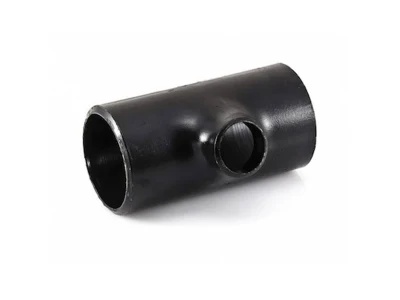

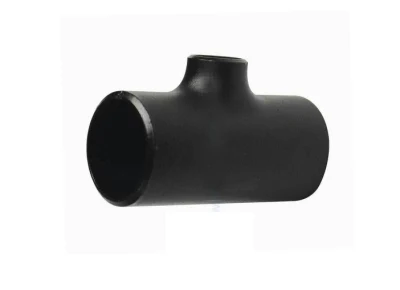

ANSI B16.9 A234 Wp11 Cl1/Cl2 Alloy Bw Fitting Tee
This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction.
These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.
ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.
ASTM A234 WP11 Fittings is highly resistant to corrosion and abrasion. The A234 WP11 is a grading of the A234 material. The A234 WP11 Fittings are manufactured from a single piece of alloy material and therefore cannot be supported with porosity. They are highly resistant to crevice corrosion attack, pitting corrosion, corrosion stress cracking and acidity. These are used in especially high pressure applications. The A234 WP11 material is used to produce many different products. Among the ASTM A234 WP11 products, the ASTM A234 Gr WP11 Fittings are the most common. The pipe fittings are components used in piping to onnect different fittings or pipes together.
Mechanical Properties
Specification
Company Profile
From 1989 to now, Kingmetal Steel focus on manufacturing and distributing pipeline products including piping, fitting, flange, valve and fastener in stainless, carbon, alloy and duplex steel.
Kingmetal has a factory to manufacture seamless stainless steel pipe from DN6 to DN600 and distribute seamless steel pipe and fitting from top brand manufacturers such as Baosteel, Hengsteel, Tiansteel and Pansteel etc.
All of products are strictly compliance with standard, 100% inspection passed including visual, dimension and PMI test before shipment.
Both our sales and logistic teams are over 10 years of experiences and training frequently.
After- sales service with high efficiency, if any products are short quantity/weight or damaged caused by manufacturing, design or transportation can be compensated.
Why choose us?
One-Stop Solution
We have thousands of total production experience, from raw materials to finished products.
Competitive Price
Large scale purchase, standardized production process and efficient management make our price competitive.
Quick Shipping
Years of export experience enable us to control the transportation time more accurately.
Quality Control
The standardized production process, comprehensive management system, professional testing equipment
Special material customization
We support the customization of various complex materials
OEM/ODM
We support any form of OEM/ODM customization requirements.
This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction.
These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.
ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.
ASTM A234 WP11 Fittings is highly resistant to corrosion and abrasion. The A234 WP11 is a grading of the A234 material. The A234 WP11 Fittings are manufactured from a single piece of alloy material and therefore cannot be supported with porosity. They are highly resistant to crevice corrosion attack, pitting corrosion, corrosion stress cracking and acidity. These are used in especially high pressure applications. The A234 WP11 material is used to produce many different products. Among the ASTM A234 WP11 products, the ASTM A234 Gr WP11 Fittings are the most common. The pipe fittings are components used in piping to onnect different fittings or pipes together.
Chemical Composition
| Content | WPC C,D,E, | WP11 CL1 | WP11 CL2, | WP11 CL3 |
|---|---|---|---|---|
| Carbon | 0.3 | 0.35 | 0.05-0.15 | 0.05-0.20 |
| Manganese | 0.29-1.06 | 0.29-1.06 | 0.30-0.60 | 0.30-0.80 |
| Phosporus | 0.05 | 0.05 | 0.03 | 0.04 |
| Sulfur | 0.058 | 0.058 | 0.03 | 0.04 |
| Silicon | 0.10 minimum | 0.10 minimum | 0.50-1.00 | 0.50-1.00 |
| Chromium | 0.4 | 0.4 | 1.00-1.50 | 1.00-1.50 |
| Molybdenum | 0.15 maximum | 0.15 maximum | 0.44-0.65 | 0.44-0.65 |
| Nickel | 0.4 | 0.4 | … | … |
| Copper | 0.4 | 0.4 | … | … |
| Others | Vanadium 0.08 | Vanadium 0.08 | … | … |
| Tensile Requirements | WPB | WP11CL1 | WP11CL3 |
| Tensile Strength, minimum, ksi[MPa] | 60-85 | 60-85 | 75-100 |
| (0.2% offset or 0.5% extension-under-load) | [415-585] | [415-585] | [520-690] |
| Yield Strength, minimum, ksi[MPa] | 32 | 30 | 45 |
| [240] | [205] | [310] |
| Specification: | ASTM A234 WP11 Fittings |
| Available Sizes | NPS1/2"-72" |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Type Of Dimension: | BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NP |
| Type | Elbow, Stub End, Pipe Bend, Tee, Reducer, Cap, Coupling, NippleCross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
