Basic Info.
Model NO.
ILNA-5818G460C-15V
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Water Tank, Vacuum Tube, Bracket
Certification
CE, ISO9001, Ce SRCC ISO CCC Keymark
Tank Material
Color Steel / Stainless Steel
Tube Type
Glass Vacuum Tube
Heating System
Thermosyphon
Installation
Rooftop Freestanding
Transport Package
Inner Styrofoam with Outer Export Carton Packing
Specification
CE, ISO9001: 2000, CCC
Trademark
INLIGHT/ OEM
Origin
China
HS Code
8419120000
Production Capacity
5000 Sets/ Month
Packaging & Delivery
Package Size
190.00cm * 40.00cm * 98.00cm
Package Gross Weight
66.000kg
Product Description

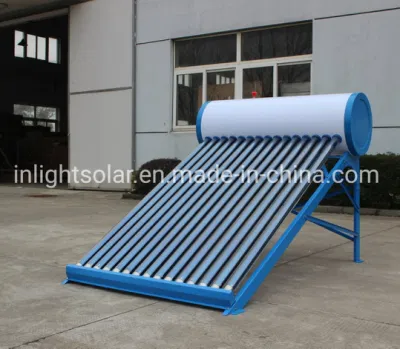

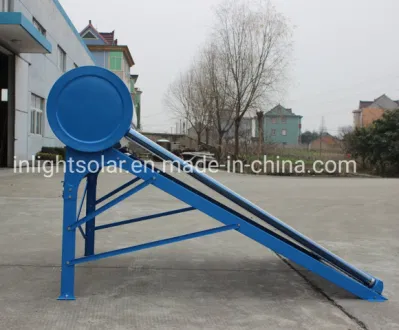

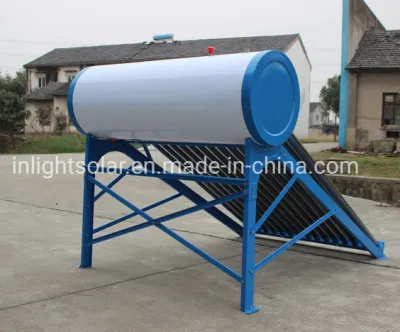

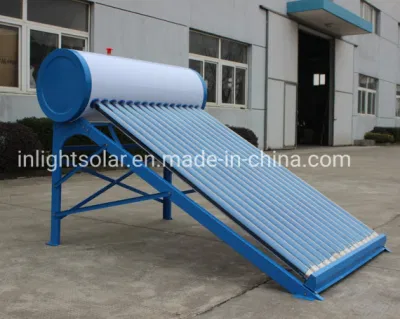

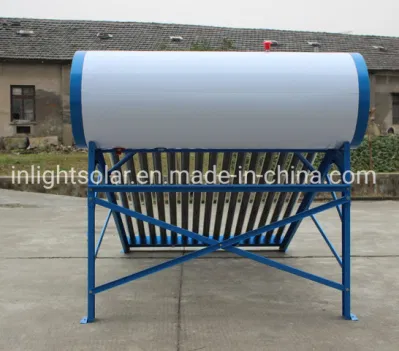

150L Non pressure color steel Solar water heater
Specifications:
| Vacuum tube | Spec. (mm) | Φ 58× 1800 |
| Tube (pcs) | 15 | |
| Material | Borosilicate glass, magnetron spluttering selective coating | |
| Coating | Cu/SS-ALN(H)/SS-ALN(L)/ALN coating | |
| Water tank | Capacity | 150L for inner water tank |
| Inner tank | Food-grade stainless steel SUS304-2B | |
| Insulation | Imported polyurethane integrated foam-forming 50~60mm | |
| Tank shell | Color steel plate | |
| Bracket | Spec. (mm) | 1.2 ~ 1.5mm in thickness |
| Material | Hot-dip galvanized steel plate/Stainless steel plate /Aluminum alloy plate | |
| Accessories | Stainless bolts & nuts, Silicon rubber seal, Dust proof rubber seal, Plastic pipe holder | |
| Optional device | Electrical heater, Intelligent controller / Assistant tank, Anode magnesium bar | |
| Tilt angle | 25° ~ 50° | |
| Water output | 45-95° C | |
| Hail resistance | Φ 25mm | |
Description:
1.Non-pressurized solar water heater is such kind of a most economical system with high efficiency at the same time. It works depending on the gravity of water, so it's much better to be installed on the slope or flat roof as top as possible to get enough hydraulic pressure.
2.A simple assistant tank can be equipped for tap water refill automatically or with an intelligent controller to control the start up of auxiliary heating device at the same time.
3.Vacuum tube: Hail-resisting borosilicate glass with high-tech selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a high temperature resistance (380oC).
4.Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced welding technics to ensure it with a long lifespan (15 years).
5.Water tank shell: Imported color steel plate, with its outer coating treatment ensures a long life even to ocean coast weather.
6.Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly as long as 70~80 hours.
7.Supporting Bracket: Hot-DIP galvanized steel plate with a good weight bearing and wind resistance(140 km/hr), super mechanical performance and corrosion resistance ensures a long life to ocean coast, easy installation, universal bracket suitable for either flat or slope roof installation.
8. Accessories: Stainless bolts & nuts, water-proof silicon rubber, anti-aging dust-proof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the system
Optional Devices
1.Assistant tank, to automatically feed tap water into storage tank to keep it sufficient always
2.Electrical heater, as an auxiliary heating element in case of raining or snowing days so as to ensure a continuous hot water supply
3.Intelligent controller, automatically controls water refill and start up of auxiliary heating device, more intelligent operation
Working Theory:
Non-pressure vacuum tube solar water heater is an open loop and thermosyphon system. The vacuum tube with special absorptive coating can absorb the sun energy and transfer sun energy to heat energy. Whole system works according to the thermosyphon principle. Water in vacuum tubes is heated and then rises to top of tank. Cold water in tank goes down to the vacuum tube bottom. Water in the system will be heated as circulation keeps going on. This type of solar water heater is one of the most popular systems because of its own advantages of high efficiency,cheap price,simple Installation and free maintenance
