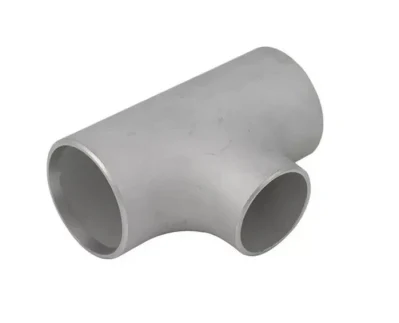

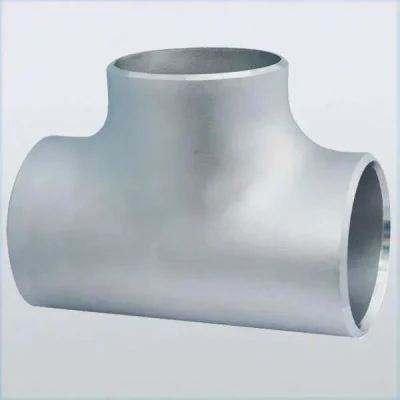

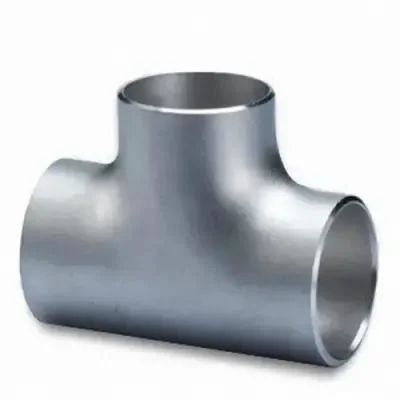

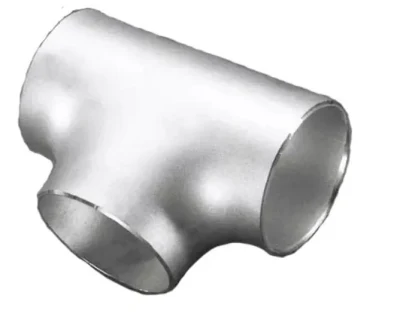

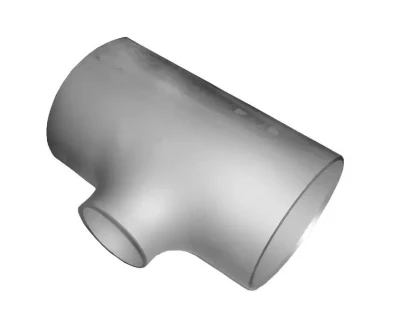

Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee

Shop Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee at our factory. High-quality, durable products for your industrial needs. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • FAQ
Overview

Basic Info.

Model NO.
Monel 400
Lateral
90°Tee
Head Code
Round
Wall Thickness
Sch5s-Sch160
Finish
Polish
Technics
Customizable
Pressure Rating
3000LBS
Standard
ASME B16.9
Certification
ISO
Material Grade
Alloy B-2
Packing
Standard Packing
Brand
Tobo
Place of Originn
China
Transport Package
Standard
Specification
1/8"-48"
Trademark
TOBO
Origin
China
Production Capacity
500000PCS/Year

Product Description

Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee
Specifications:

1.Nickel Alloy Pipe Fittings.
2.Size:1/2''-72''
3.ISO 9001,ISO 9000

4.Our main clients are from Turkey, Italy, France, Spain, South Africa, Morocco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

Production Name Nickel Alloy Pipe Fittings
Standard ASME/ANSI B16.9, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Size 1/2''~48''(Seamless);16''~72''(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.
The third party inspection: BV,SGS,LOIYD,TUV,and other party alloyed by clients.


WHAT IS THE MONEL 400?

Monel400 is a nickel based corrosion-resistant alloy that has been widely used in industry for a long time. Its comprehensive performance is excellent, and it has become an indispensable alloy due to its excellent corrosion resistance. Its chemical composition is mainly composed of Ni, 30% Cu, and a small amount of Fe (1% -2%). Fittings is used in high temperature and high corrosion prone applications. The material is corrosion resistant and heat resistant because of its unique composition. It is a nickel molybdenum chromium super alloy that is stabilized with tungsten.
Features: Good resistance to stress corrosion cracking
Good resistance to pitting and crevice corrosion
Very good resistance to oxidation and non-oxidative hot acid properties
Excellent mechanical properties at room temperature and high temperature up to 550°C
Certification for pressure vessels manufactured up to 450°C

Some common applications for nickel alloys:
  1. Desalination plants
  2. Pressure vessels
  3. Oil platforms
  4. Heat exchanges
  5. Seawater handling
  6. Pulp bleaching
  7. Etc.
NICKEL ALLOY Material Grade(Only lists part):
Trade Name ASTM Pipe Pipe Fittings UNS Forging & Flanges
Monel 400 B165 B366 WPNC N04400 B564 N04400
Inconel 600 B167 B366 WPNCI N06600 B564 N06600
Inconel 625 B444 B366 WPNCMC N06625 B564 N06625
Incoloy 800 B163 B366 WPNIC N08800 B564 N08800
Incoloy 800H B407 B366 WPNIC10 N08810 B564 N08810
Incoloy 800HT B407 B366 WPNIC11 N08811 B564 N08811
Incoloy 825 B423 B366 WPNICMC N08825 B564 N08825
Hastelloy B2 B619/622 B366 WPHB-2 N10665 B564 N10665
Hastelloy C276 B619/622 B366 WPHC276 N10276 B564 N10276
Hastelloy C22 B619/622 B366 WPHC22 N06022 B564 N06022
Carpenter 20Cb-3 B729 B366 WP20Cb N08820 B462 N08820
SANICRO 28 B668   N08028

Company Profile

    TOBO Group since1998, as a professional supplier for pipe fittings products is located in Shanghai, enjoy convenient transportation and beautiful environment. Dedicate to strict quality control and customer service. Our experienced staff members are always available to discuss your requirements and ensure for customer satisfaction. We have been manufacturing pipe fittings for many years, and we specialize in supplying all kinds of valuable alloy steel pipe fittings, super duplex pipe fittings, nickel alloy pipe fittings, copper nickle pipe fittings and global special steel comprehensive solutions. also we provide one- step solution for solve small quantity, high- precision and difficult non- standard metal parts for global customers.       We are famous for superior quality, competitive prices, first- class works, safe package and proper delivery. Therefore, we can fully satisfy your demands and have a large customer base. Our products sold worldwide markets, such as south America, Europe, Southeast Asia, Mideast and Africa, except of our products, we accept customized order as well. Also we supply and export varies kinds of flanges, steel couplings, steel pipe nipples, bends and reducers, brass copper fittings, gaskets and different material including brass, super duplex steel, Stainless Steel. Our products are popular in overseas markets. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long term mutual benefits. We are looking forward to receiving your inquiries soon.


Pipe&Fittings Work Shop
Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee

Monel 400 Nickel Alloy Pipe Fittings Butt Welding TeeMonel 400 Nickel Alloy Pipe Fittings Butt Welding Tee

Our Customer

Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee
Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee

Lovely Family

Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee
Monel 400 Nickel Alloy Pipe Fittings Butt Welding Tee


Why Choosing TOBO GROUP:

-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Danieli Metallurgical Equipment
-Experienced Professionals on Communications


Packaging & Shipping
Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China



FAQ

Q1. What is your kinds of packing?
A: Plastic bags or brown paper; pallet; wood case, carton box;.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance against bill of ladiong copy; or L/C at sight.

Q3. How about your delivery time?
A: Generally, it will take 7 to 15 days for 1*20ft, 15-20 days for 1*40ft after receiving your advance payment.

Q4. Can you produce according to our samples?
A: Yes, you can send samples to us and we can check your quality and produce as per your samples or
technical drawings.

Q5. Can I get samples?
A: Yes, small samples are usually free with express service expense at customer's cost.

Q6: Is factory visit or inspection acceptable?
A: Yes,factory visit is always welcomed and inspection like third-party inspection okay.

Q7: Do you attend any expo?
A: Yes, usually we attend sign expos in Shanghai twice in a year (one in March and the other in September).
And we attended Sign Asia expo in IMPACT, THAILAND. In future we will add China Import and Export Fair
(Canton Fair) into our exhibition list, also some international expos which will be hold in different countries.

Q8: How about the after-sale service?
A: If there has any quality problems when you receive our products, show us photos and after discussing we
will afford the lost from next order.
