Basic Info.
Product Description

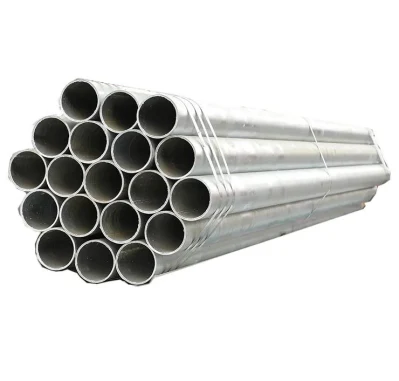

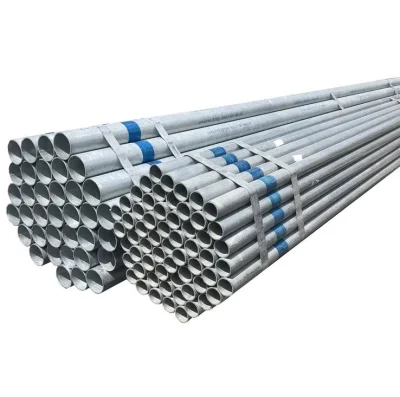

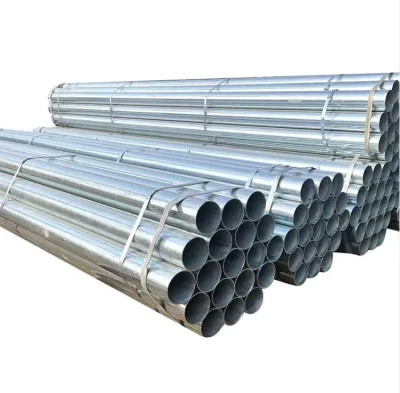

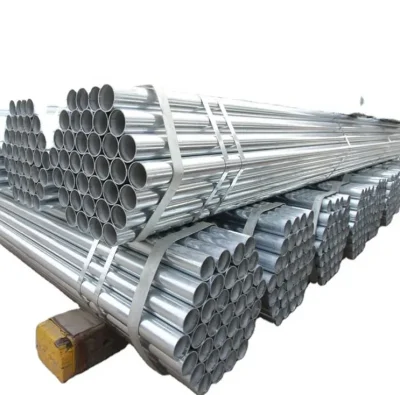

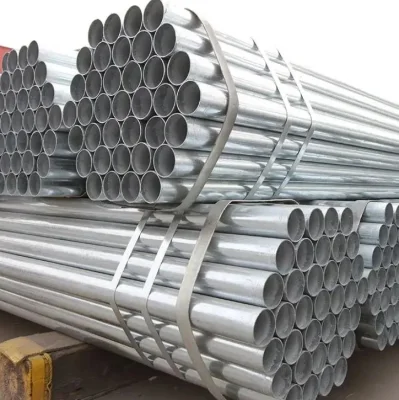

Galvanized Steel Pipe/Tube Of GI Carbon Steel Q235 Q345 S235JR S275JR Seamless/Welded Bright Surface
Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. The hot-dip galvanized steel pipe base and hot-dip galvanized steel pipe undergo complex physical and chemical anti-galvanizing to form a zinc-iron alloy layer with a tight corrosion-resistant structure.
The alloy layer is formed by combining the pure zinc layer and the steel pipe matrix. Hot dip galvanizing is one of the most excellent electroplating methods for protecting steel substrates. It is the liquid state of zinc. After quite complex physical and chemical action, not only a thick pure zinc layer is plated on the steel, but also a zinc-iron alloy layer is formed. This method not only has the corrosion resistance of galvanizing, but also has strong corrosion resistance unmatched by galvanized due to the zinc-iron alloy layer.
| Product Name | Hot dip galvanized pipe | |||
| Out Diameter | Hot dipped galvanized:1/2''-24''(21.3mm-600mm). Such as 21.3mm, 33.4mm, 42.3mm, 48.3mm, 114.3mm or as customer request. | |||
| Thickness | Hot dipped galvanized: 0.8- 25mm. | |||
| Zinc coating | Hot dipped galvanized:35μm-200μm | |||
| Type | Electronic Resistance Welded (ERW) | |||
| Steel Grade | Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D | |||
| Standard | BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004 | |||
| Surface Finish | Pre-galvanized, Hot dipped galvanized, Electro galvanized, Black, Painted, Threaded, Engraved, Socket. | |||
| International Standard | ISO 9000-2001, CE CERTIFICATE, BV CERTIFICATE | |||
| Packing | 1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers | |||
| Main Market | Middle East,Africa, Asia and some Uropean country and South America, Australia | |||
| Country of origin | China | |||
| Productivity | 5000Tons per month. | |||
| Remark | 1. Payment terms : T/T ,L/C 2. Terms of trade : FOB ,CFR,CIF ,DDP,EXW 3. Minimum order : 1 tons 4. Delivery time : Within 25 days. | |||
| STEEL GRADE | CHEMICAL COMPOSITION % | MECHANIC PROPERTY | C.B OF COATING | ||||||
| C | Si | Mn | S | p | T.S | Y.S | E.L | ||
| | x103 | x103 | x102 | x103 | x103 | Mpa | Mpa | % | d=180 |
| JIS G3302 SGCC | 12 | 30 | 41 | 31 | 21 | 480 | 300 | 13 | OK |
| JIS G3302 SGCH | 12 | 10 | 21 | 18 | 6 | 680 | 650 | 20 | OK |
| ASTM 653 CS.B | 29 | 30 | 60 | 35 | 30 | 386 | 250-380 | 20 | OK |
| DX51D+Z | 20 | 21 | 18 | 1.8 | 11 | 355 | 245 | 38 | OK |
| G550 | 12 | 6 | 73 | 5 | 17 | 715 | 654 | 8 | OK |
Materials steel pipe
Scaffolding pipe
Fence post steel pipe
Fire protection steel pipe
Greenhouse steel pipe
Low pressure liquid, water, gas, oil, line pipe
Irrigation pipe
Handrail pipe
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe, and our company also is a very professional a trade company for steelproducts.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
